Boom Details

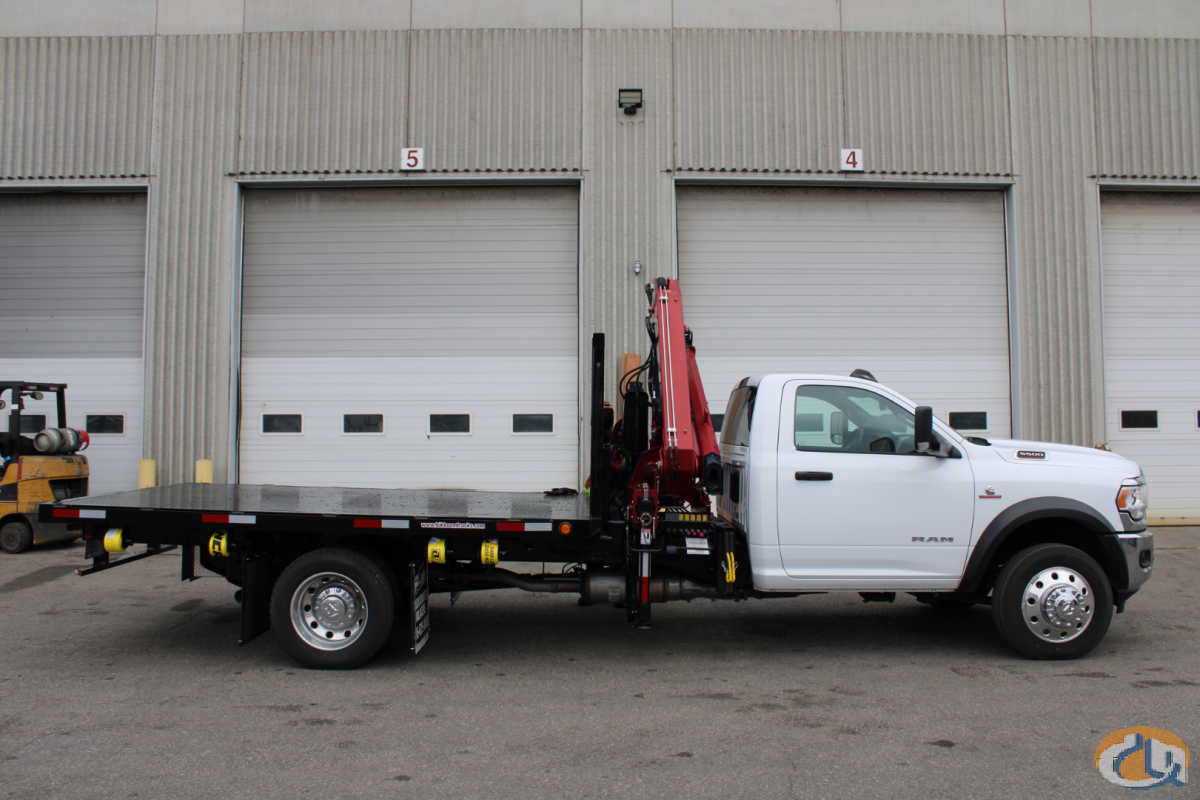

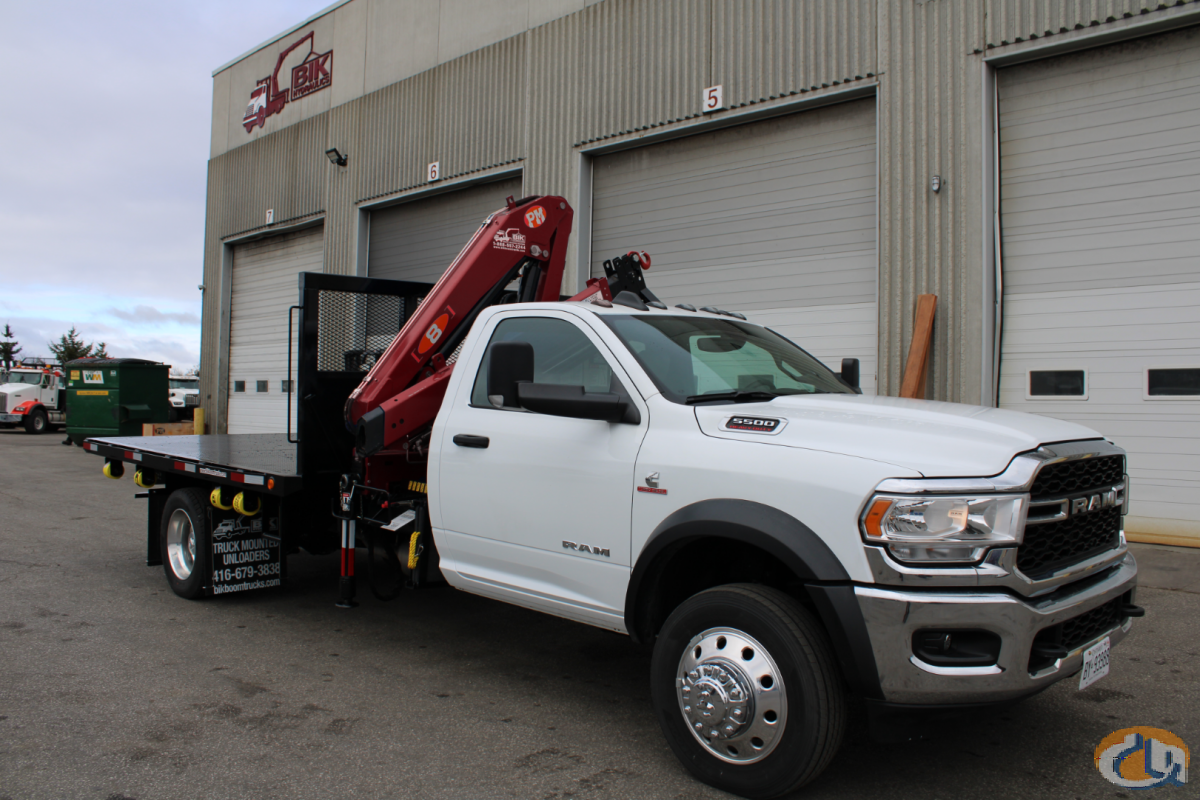

NEW – PM 8023 KNUCKLE BOOM
- 3-Hydraulic extensions to 29′-6″ Horizontal Reach (40′ Vertical)
- Horizontal Capacity:
-
- 7,170 lb @ 6’3″
- 4,299 lb @ 12’10”
- 2,690 lb @ 18’3″
- 2,006 lb @ 23’7″
- 1,565 lb @ 28’6″
- Installed at the rear on custom shear-plated Sub Frame by BIK, prepped, primed, and painted. New Air Operated PTO, Hydraulic Pump Supply and Return Lines, Hydraulic tank mounted on pedestal w/ shut-off valve. Load Tested.
Standard Features Includes :
- Manual OUT & Hydraulic DOWN – Radial, manual tilting 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
- Load Holding Valves on cylinders for Safety and Security of Operator and Load
- Heavy Duty Pedestal Turning Cylinders for greater turning Torque, reduced wear, and improved precision- 400 degrees rotation
- End of Frame Mount – Behind Cab
Deck Details

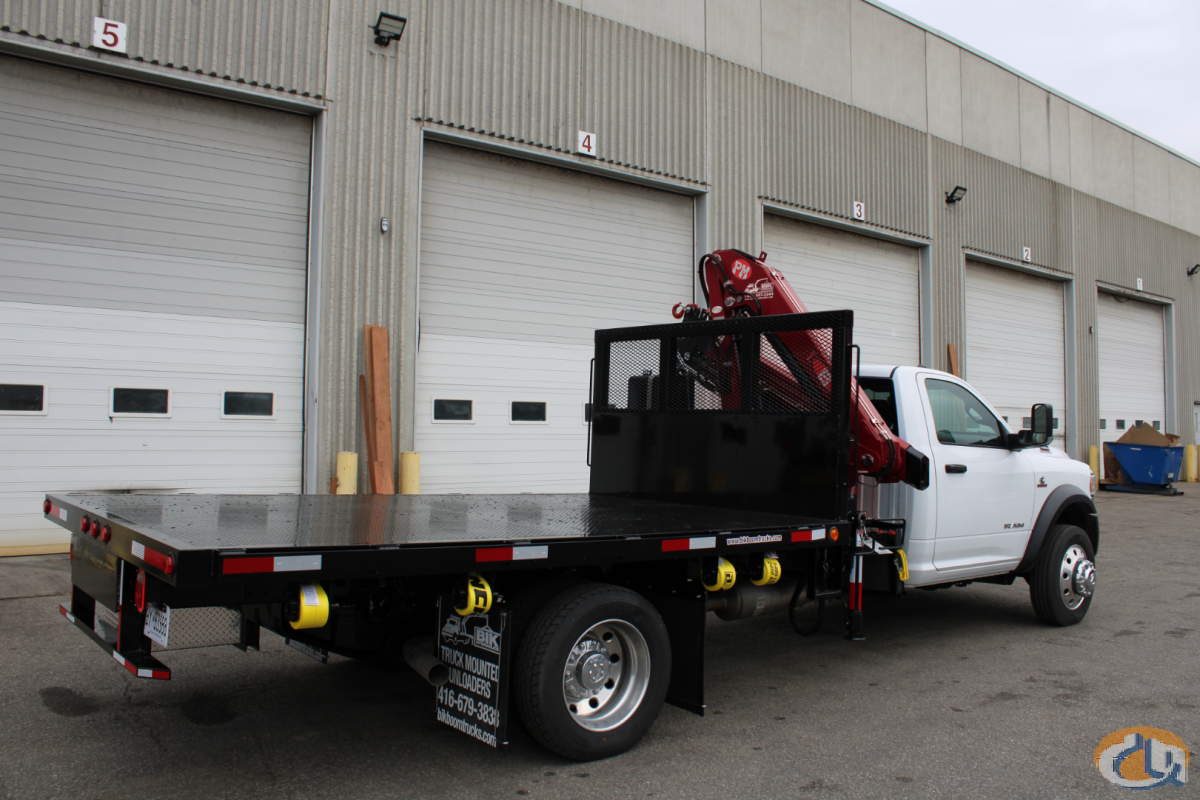

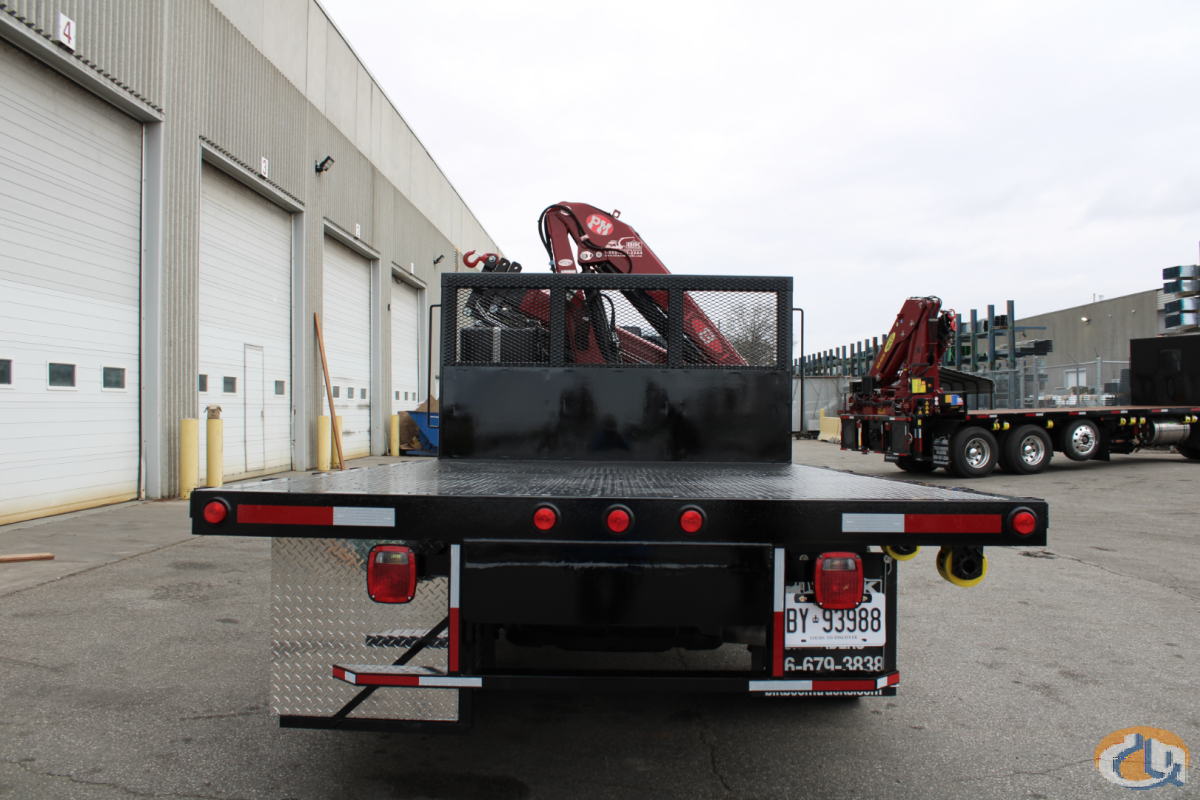

NEW 6’8” X 96” DECK
- 12 overall length
- 8′ wide outside rub rail
- 30″headboard, winch bar holder painted black with conspicuity tape and propel marker lights. Access ladder step up on both sides.
Truck Details

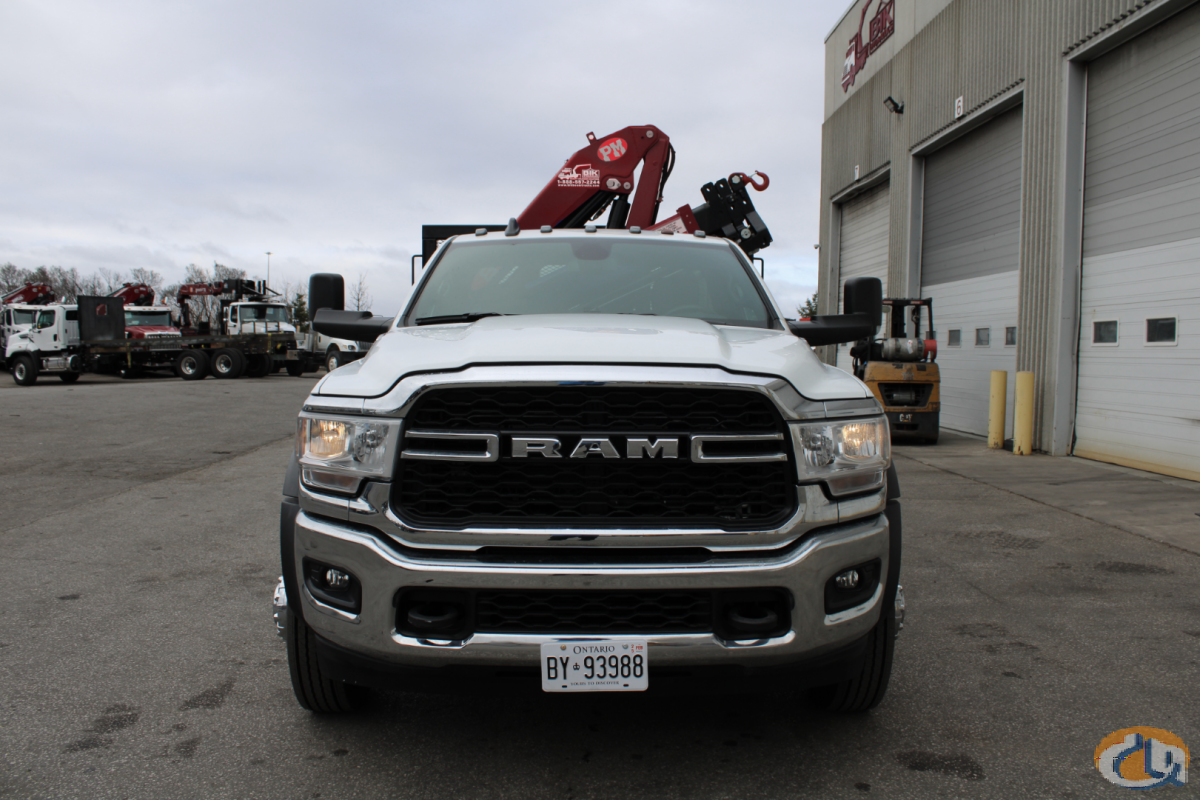

NEW – DODGE 5,500 SINGLE AXLE CHASSIS: 19,500 lb GVWR – HYDRAULIC BRAKES
- 325 hp Cummins Turbo Diesel Engine, 6 speed automatic transmission, white cab
- 7,000lb front axle, 13,500lb rear axle with225/17R19.5all season tires on aluminum rims, Hydraulic Brakes
- Features Include: Air. Cond. am/fin stereo, cruise control, engine block heater, 40/20/40 3 person front seating, back up camera, power windows door locks, mirrors, tilt and telescopic steering, blue tooth,12 volt in dash power supply, touch screen am/fin Sirrus accommodation, etc.
Additional Options:
- Drawplate installed at rear with pintle hook D rings and electric brake actuator
- 36″ aluminum storage box installed
- Wooden stake rack sides 2 boards high
- Boom: 3'
- Capacity: 8.00
- Condition: New
- Location: Milford Massachusetts USA
View the manufacturer specifications here:
PM 8023 Specs
Rental Prices
Please contact the dealer for pricing -- 888-557-2244
