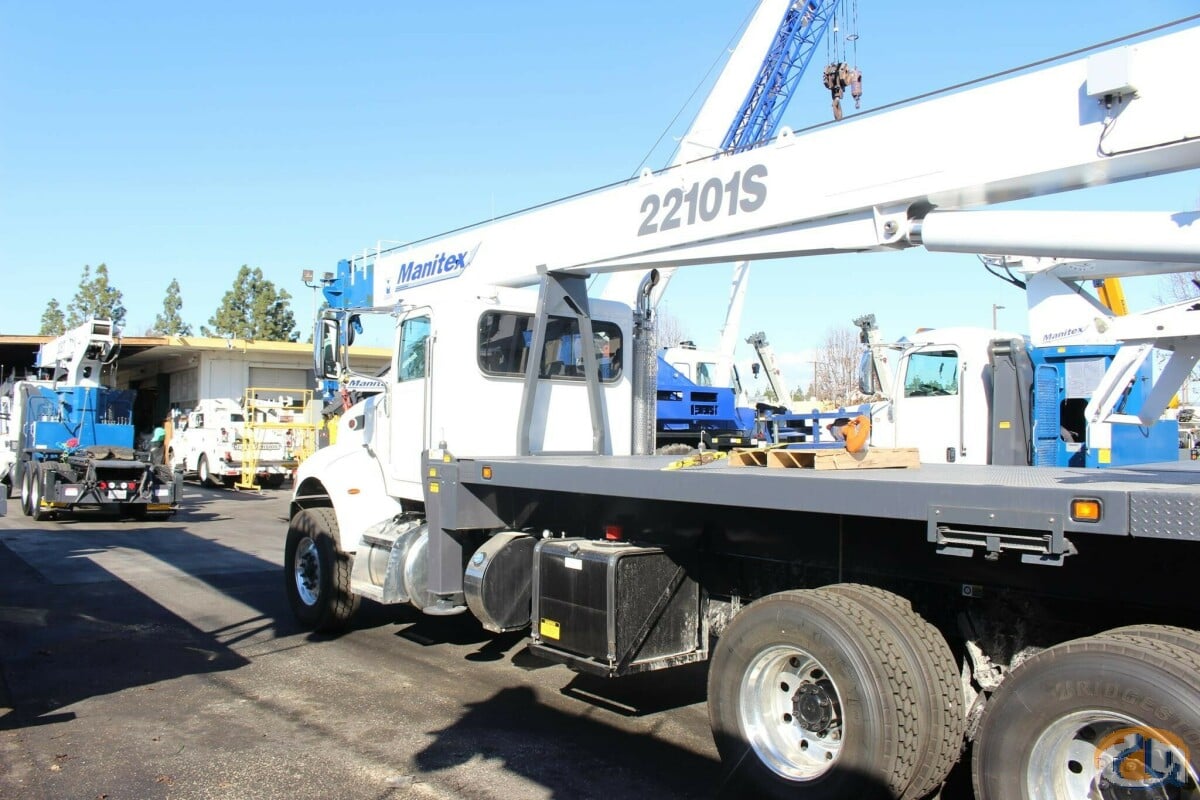

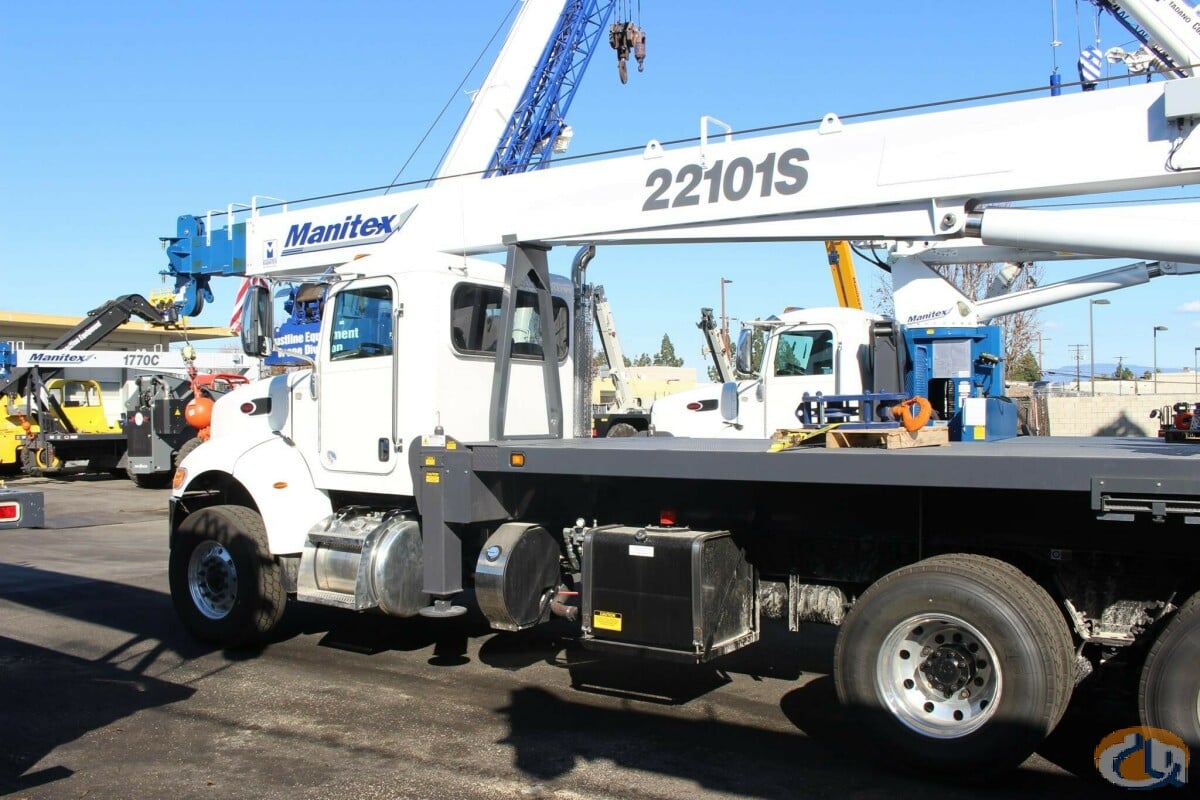

MANITEX 22101S
22 TON CRANE
Standard features:

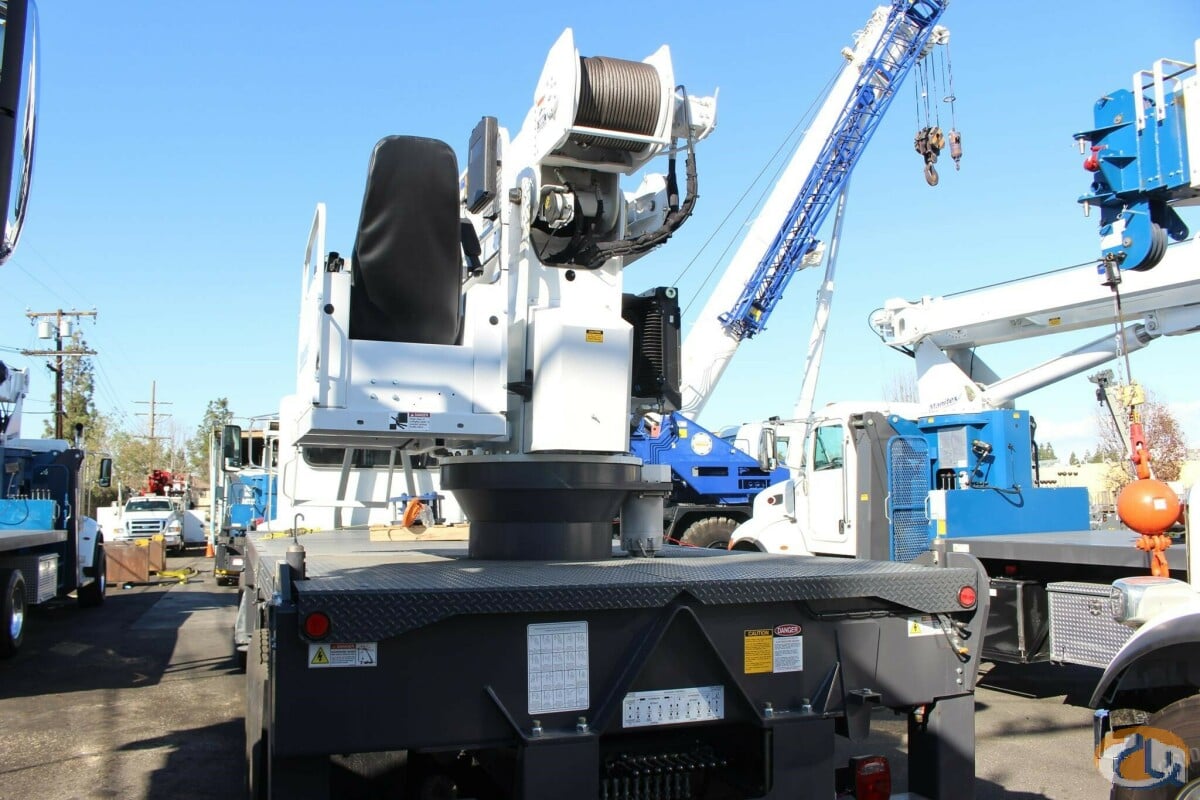

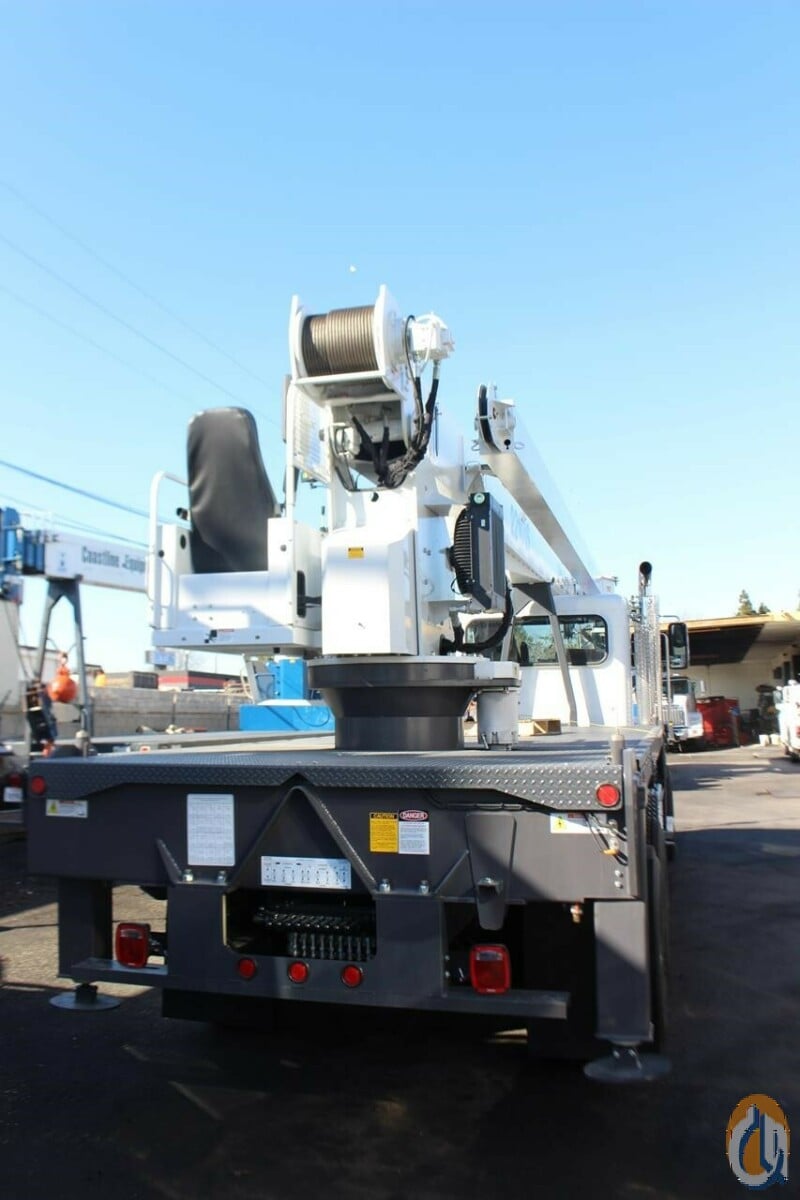

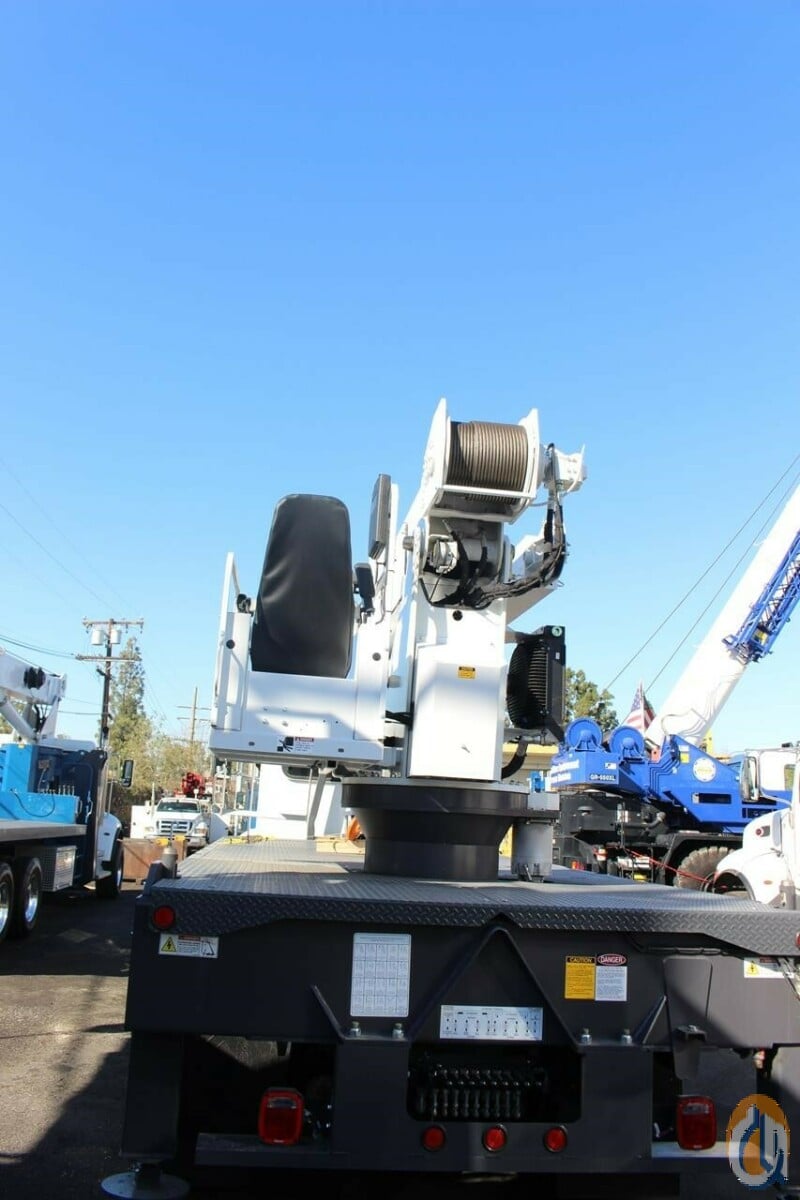

101’ Four-Section Telescopic Boom, 2-speed Hoist w/grooved drum & hoist drum rotation indicator, Boom Hoist Cylinder, 3-Load Sheave Quick Reeve Boom Head, Anti-Two Block w/lockout, Pilot Controls, System Pressure Gauge, 360° Area of Operation, Continuous Rotation, Ride-around Operator Station with seat, Removable Boom Rest, Engine Start/Stop, Operator’s Service/Parts Manuals, Boom Length and Angle Indicators, Electronic Throttle, Lower Frame for 13’ Flatbed, Outrigger monitoring system for verification only, 7 Ton Hook and Ball, 300’ of 9/16” Rotation Resistant Wire Rope, 70 Gallon Reservoir w/Suction Strainer & Ball Valve, Turret, Rotation Bearing & Swing System, Load Moment Indicator– Audio/Visual Alert w/Shutoff, Audible Outrigger Motion Alarm, 4 Out-and-Down Outriggers, 19’9” spread including capacities for Intermediate 13’6” and retracted 7’3” spreads on tandem axle, 2 retractable Ladders for easy access to bed, 3-Section Hydraulic Gear Pump – CCW Rotation is Standard, Signal Horn, Oil Cooler.
Additional Options Included:
• Radio ATB
• 1 Piece 29’ Jib 101’ Boom Only
• 13’ Steel Bed
• Truck Mount Installation
• Chassis mounted hydraulic reservoir
• 3 Section Vane Pump ClockWise Rotation
• Hotshift PTO
• Drive Shaft for pump installation
• 15 Ton 1-Sheave Quick Reeve Block 9/16” rope
• Front Center Stabilizer
• Mounting Front Center Stabilizer
• Control Valve for operation of single stabilizer, Required w/FBS

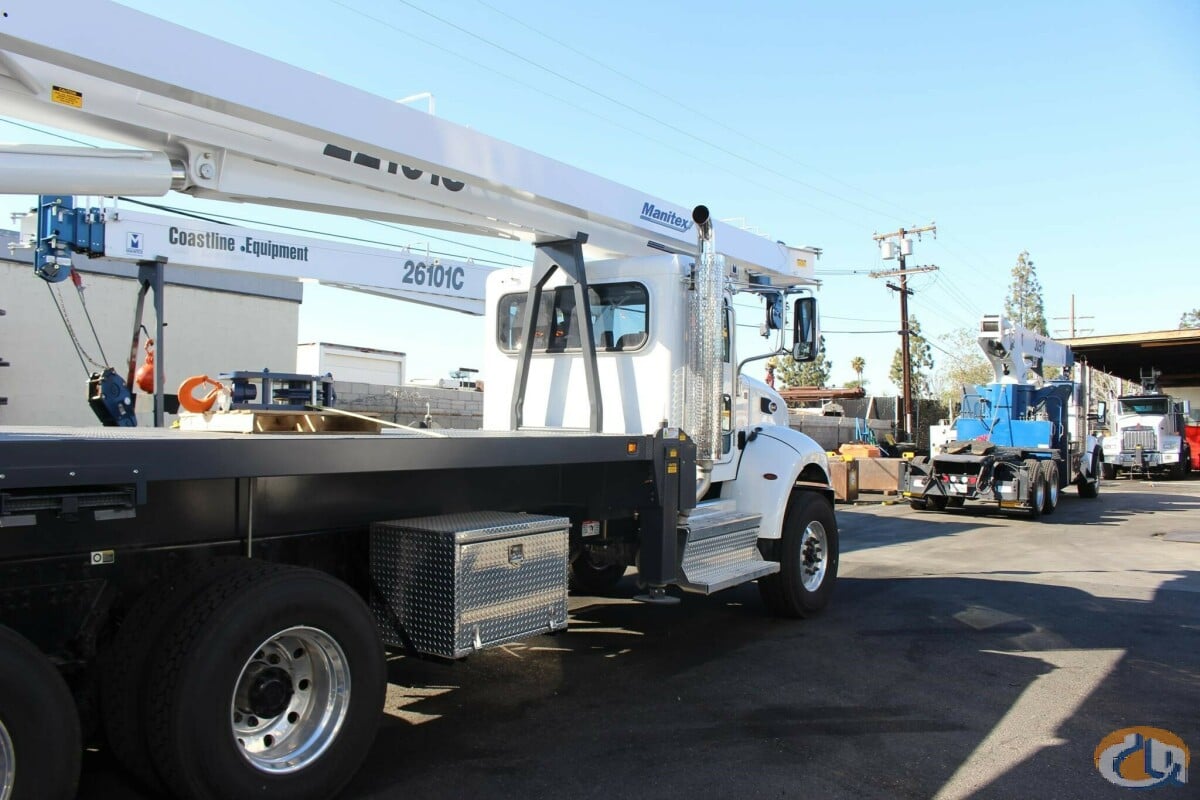

• 36 x 24 x 24 Aluminum Toolbox chassis mounted

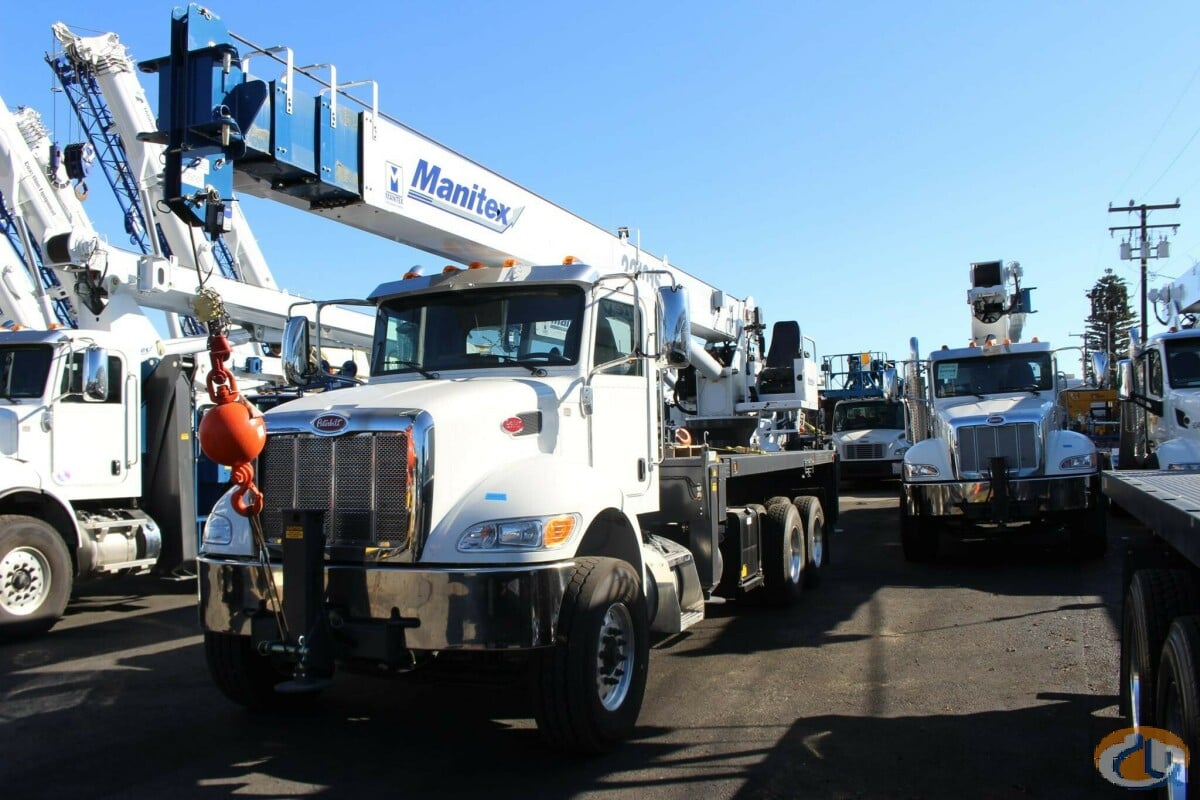

MOUNTED ON PETERBILT 548

Mounted on a 2026 Peterbilt 548 tractor chassis with a Paccar PX-9 370 HP diesel engine, Allison 3000 RDS-P Gen 5 Transmission, Dana Spicer D2000F 20,000 lb. front axle, Dana Spicer DSH40 40,000 lb. rear axle, Full set of Alcoa polished wheels, D-Shape Aluminum 50 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Gray/Black, AM/FM/WB Bluetooth Phone and audio radio, Air Horn mounted under cab, Dual heated mirrors, Stainless steel sunvisor, Halogen headlights and unit is painted Axalta Two Stage White.
